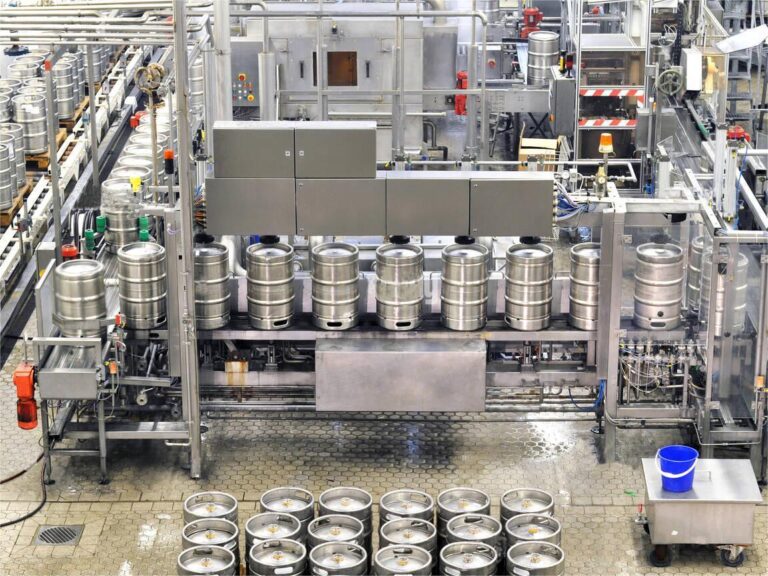

The operating principle of a keg filling line can be summarized in the following steps:

• Beer is transported from bright beer tanks via pipelines to the filler.
• The filler precisely controls the opening and closing of valves and pumps to fill the kegs at the set rate and volume.
• After filling, the equipment automatically performs subsequent processes such as sealing and pressing to ensure the sealing and quality of the beer.
• Finally, the filled kegs are transported to the next stage for packaging or storage.

The kegging line is efficient, accurate, and stable, meeting the speed and quality requirements of modern breweries.

Key Features

It is efficient and flexible, and can quickly switch between different barrel types. It can adapt to beer kegs of different sizes and specifications.

PLC interface enables one-touch parameter setting, fault self-diagnosis and production data recording. It can be equipped with an IoT interface to support remote monitoring.

The contact surface with beer is made of SUS304 stainless steel, which meets food-grade hygiene standards

Anti-drip design and pneumatic component overload protection ensure a clean production environment and safe operation

Water and air circulation systems (such as cleaning water recovery) and low-power motor configurations reduce energy consumption and wastewater discharge.

Configuration

Multi-station inner barrel cleaning, strict implementation of each cleaning process to ensure filling safety and hygiene

Adopt a lifting device to stably control the up and down, front and back conveying process

The cleaning process includes draining residual liquid, multiple internal cleaning, rinsing, recycling, high temperature sterilization, CO2 pressure preparation and measurement filling, etc., which effectively ensures that kegs are hygienic and free of mucus

Equipped with photoelectric detection to automatically sense the progress of each link

Equipped with a weighing device, equal quantities are passed, unqualified ones are excluded, and pushed to the processing table to ensure that each barrel has the same capacity

The control system can receive and provide feedback data quickly and accurately

Equipped with a sensitive touch screen interface, you can freely set the required parameters, display each operation step, and the process is clear at a glance
