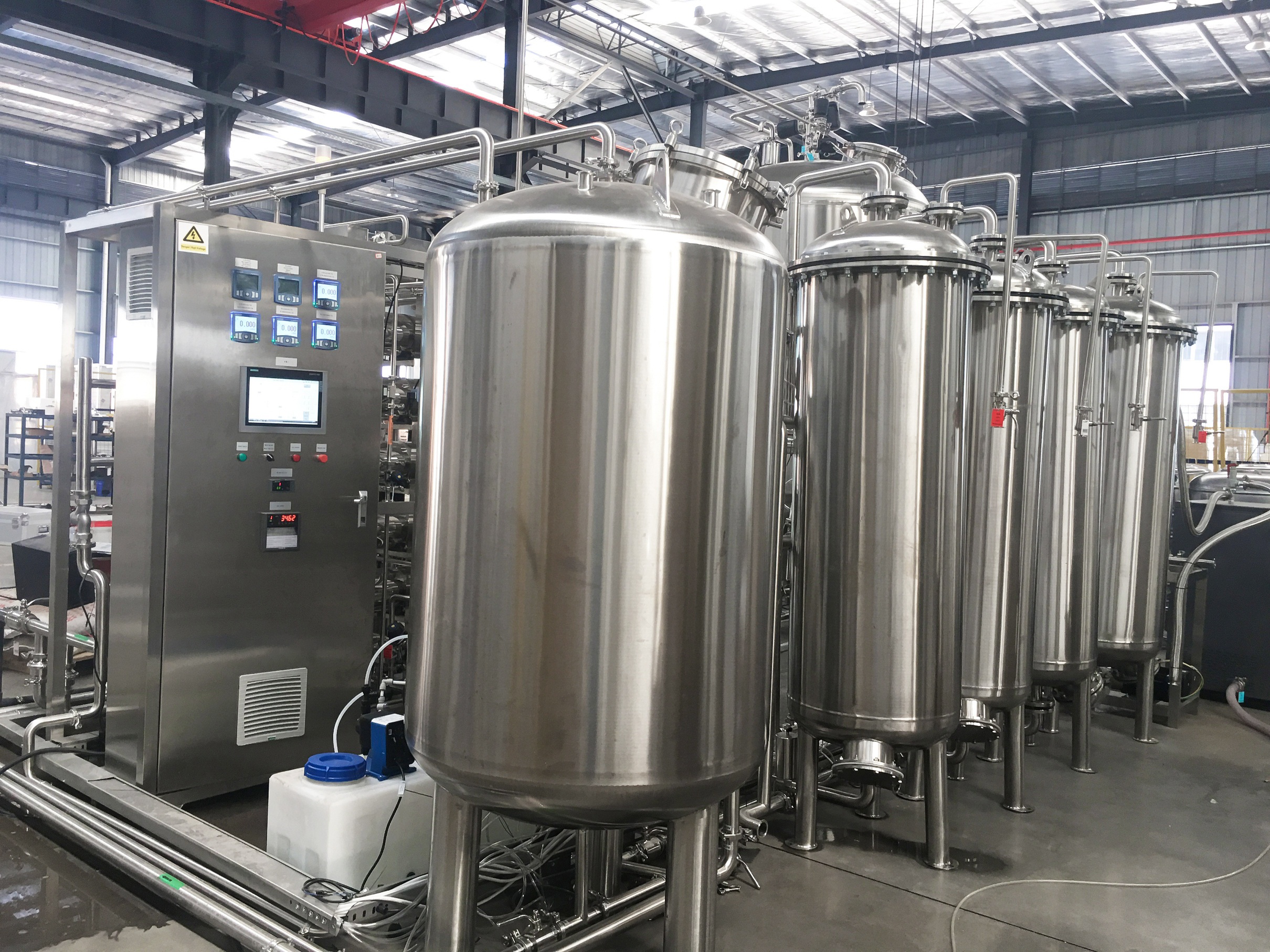

Reverse osmosis (RO) Water System

Reverse osmosis (RO) Water System

Reverse osmosis (RO) equipment is designed to adapt to raw water with various salt contents, particularly in high-salinity water treatment projects. This achieve good technical and economic benefits.The reverse osmosis method has proven to be an effective desalination technique with several advantageous characteristics, including simplicity in recovery, stable operation, compact size, and simple operation. While effectively removes salt, reverse osmosis equipment also eliminates a considerable amount of bacteria, colloids, and large molecular weight organic matter.The single-stage RO equipment utilizes a series of precision filters, granular activated carbon filters, compressed activated carbon filters, and other specialized processes to purify the raw water. The pore size of the RO membrane is designed to be of 1/10000μm (approximately 1/6000 the size of E. coli and 1/300 of viruses), effectively reduces the high-concentration water to a lower-concentration water, ensuring the water is purified to the required specifications. At the same time, all impurities mixed into the water such as industrial pollutants, heavy metals, bacteria, and viruses are isolated, so as to meet the physical and chemical indicators and hygienic standards required for drinking and brewing.
  • Automation
  • Energy saving
  • Full process service
Learn More

Process Parameters

  • Raw water flow: 1000-60 000 liters/hour
  • Brew water flow: 500-30 000 liters/hour
  • Raw water pressure: 0.15-0.30Mpa
  • Raw water temperature: 5℃-45℃ (strictly prevent freezing)
  • pH range: 4-9
  • Hardness: 17 mg/L (CaCO3)
  • Turbidity: SDI<5
  • Total dissolved solids: TDS<350mg/L
  • Iron: <0.1 mg/L
  • Free chlorine: Not detectable
  • Manganese: <0.05 mg/L
  • Organic matter: <1 mg/L

Components

Raw water tank*1 unit

RO water treatment machine*1 unit

Matching pumps, valves, and pipes

Configuration features

  • Separate raw water tank: provides a stable and continuous water supply for the entire system, overcoming the potential instability of water supply in the pipe network. A 304 stainless steel water tank is also available for your convenience. If you need, we can also construct a reservoir.
  • Booster pump: provide the required working pressure for each piece of pretreatment equipment.
  • Use a stainless steel sanitary water purification pump: The working pressure of the booster pump is calculated based on the designed pressure drop of each pretreatment equipment, with a maximum of 0.05 MPa, and the pressure before the high-pressure pump is a minimum of 0.5 kg/cm².
  • Quartz sand filter: The raw water is initially filtered through a mechanical system containing fine-washed quartz sand. This process intercepts flocculants, large particles, and suspended impurities in the raw water. Since mechanical filters captures large amounts of suspended impurities during operation, they must be flushed and backwashed regularly to guarantee the optimal functionality of the filter.
  • Activated carbon adsorber: It is necessary to utilize activated carbon filters as the initial treatment stage for reverse osmosis unit. The osmosis system has requirements for the influent index (SDI ≤ 5) and the residual chlorine concentration (below 0.1 mg/L). To meet its influent requirements, the raw water needs to be further purified to meet the influent index for reverse osmosis. A carbon filter is installed before the reverse osmosis device to remove 60% of the water’s organic matter and residual chlorine. Activated carbon can also eliminate odors and pigments from water and enhance water clarity.
  • Antiscalant dosing device: The reverse osmosis membrane is the key component of the entire system. The continuous operation of the equipment will inevitably cause calcium and magnesium ions to precipitate and adhere to reverse osmosis membrane surface, forming scale and blocking the membrane pores. This will impair the efficiency of the reverse osmosis system and damage the reverse osmosis membrane. It is recommended to introduce a dosing system to add reverse osmosis scale inhibitors to the water to delay the precipitation of calcium and magnesium ions and scaling on the membrane surface. An automated metering dosing pump can be utilized for precise metering and dosing.
  • Fine filter: Fine filter is also called security filter. This process occurs before the raw water enters the reverse osmosis membrane unit. The PP filter element is designed to achieve large filtration flows, significant pollution-holding capacities, and minimal pressure loss. This innovative technology is able to intercept impurity particles of different sizes, combining surface filtration and depth filtration in a single, efficient process.
  • High-pressure pump: The high-pressure pump is essential to the reverse osmosis system, ensuring the requisite working pressure for water flow and quality.
  • Single-stage pure water host device: Raw water passes through a membrane under high pressure. This pressure allows the solvent in the water to diffuse from a high concentration to a low concentration, thereby achieving water separation, purification, and concentration.
