Avoiding the common pitfall: All equipment delivered, yet the brewery fails to go online. This is a critical consideration for every brewery investor.
Numerous projects stall for the same reason: brewhouse, fermentation tanks and bottling/canning lines all arrive on-site, but piping interfaces mismatch, process workflows malfunction, and no personnel are qualified for commissioning. Suppliers then shift blame to one another, leaving the project owner to resolve the messy aftermath.
Where lies the root cause? Most owners adopt a single-unit equipment purchasing mindset while engaging suppliers required to deliver a complete brewery system. What differentiates the two approaches? TianTai breaks this down in detail below.

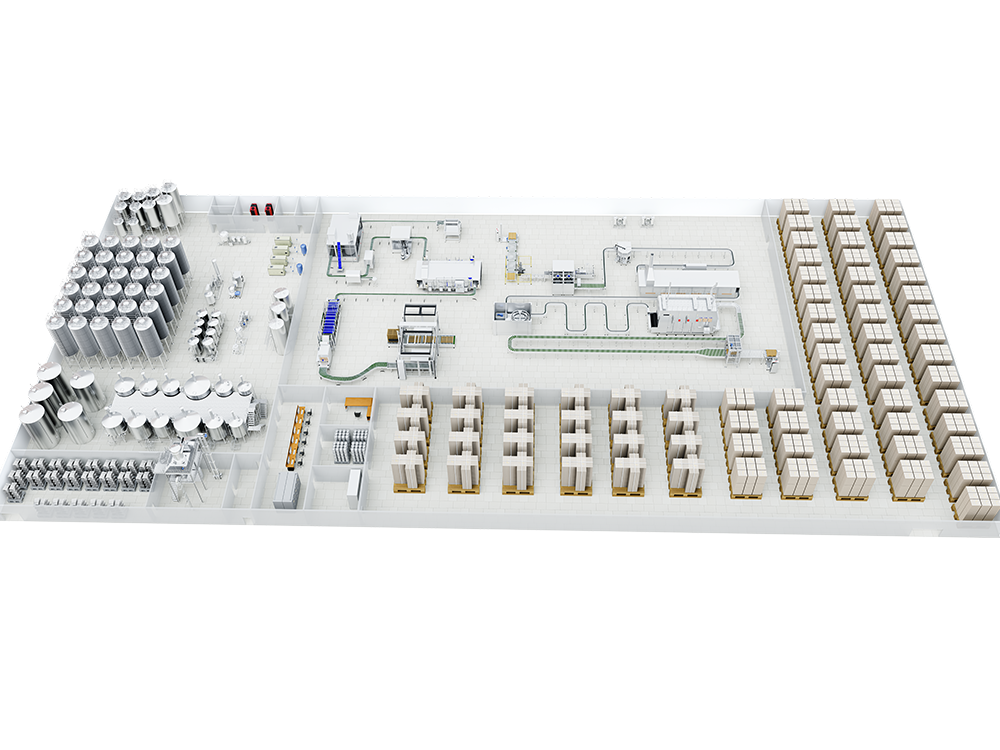

Capacity Planning: Treat it as Process Engineering, Not a Simple Equipment List
Failed brewery projects often stumble at the very first stage: equipment vendors provide quotation sheets without a complete, custom process flow diagram.
When defining production capacity, brewery equipment configuration must be fully evaluated, including malt handling system, brewhouse, fermentation system, packaging line and more. The selection of brewhouse configuration (vessel combinations) and fermentation tank quantity is calculated based on target throughput.
For every brewery project awarded to TianTai, our first deliverable is a full set of process design and capacity calculation documents. Equipment specifications are derived from process requirements, rather than forcing processes to fit pre-selected equipment. Our brewhouse portfolio covers 2-vessel, 2-tank 3-vessel, 3-vessel, 4-vessel, 5-vessel and 6-vessel configurations scaled to match client production scales. The 5-vessel and 6-vessel brewhouses are high-efficiency, stable solutions engineered specifically for large commercial breweries. This marks a key distinction between TianTai brewery solutions and competitors.
Equipment Fabrication: Built as Part of Food Safety Infrastructure, Not Merely Machinery
For large brewery production equipment, tank inner surfaces are in direct contact with beer product. Surface finish, weld quality and material grade cannot be compromised. Our competitive advantages lie within details often overlooked by project owners.
Material specification: Vessels are fabricated from food-grade 304 / 316L stainless steel. Internal surfaces undergo pickling and passivation for hygienic compliance, with mirror polishing on exterior surfaces. We enforce strict control over internal Ra finish to minimize product fouling, facilitate drainage and reduce contamination risks at source.
Welding procedure: Fully automated laser welding and TIG welding deliver smooth welds free of voids or incomplete penetration. This maintains pressure resistance and extends equipment service life.

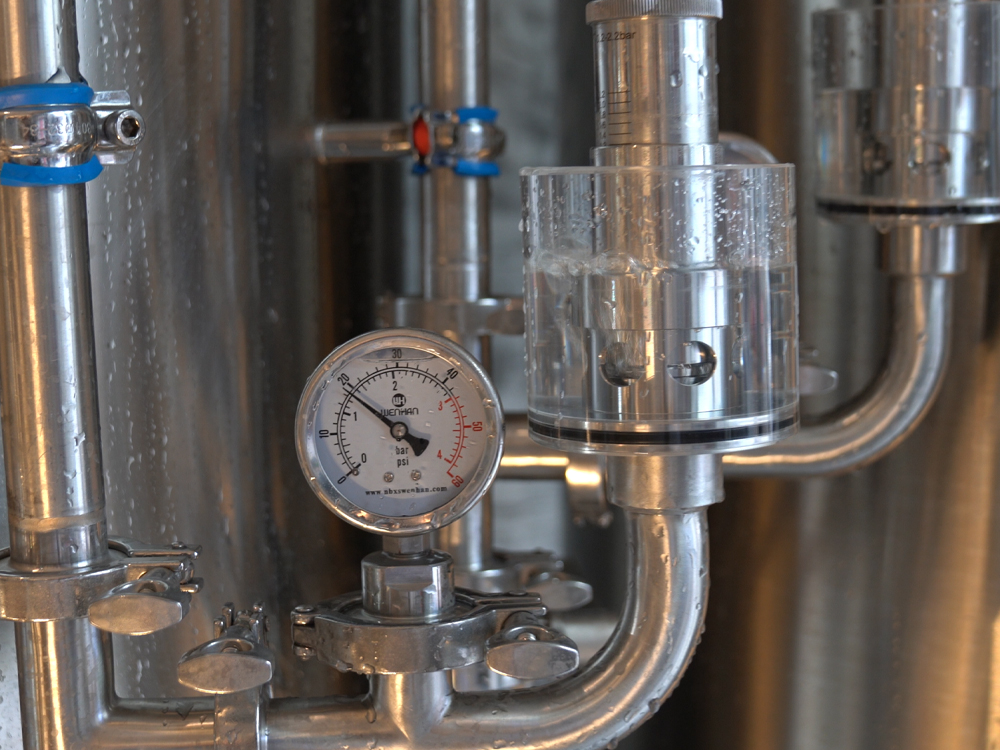

Factory quality inspection: Critical equipment undergoes multiple pre-shipment tests, including pressure testing, cooling performance verification and anti-corrosion treatment. Brewery tanks cycle through pressure fluctuations during routine production. Malfunction of vacuum / pressure safety valves on tank tops can lead to tank collapse — this inspection step is never omitted in manufacturing.
Site Installation: A Binding Commitment, Not Just a Shipment
TianTai assigns resident engineers with dual expertise in mechanical engineering and brewing technology to supervise site layout marking, installation and commissioning throughout the project.
One frequently underrated subsystem is the cleaning system. Modern breweries implement CIP (Clean-in-Place) technology, enabling cleaning and sanitization of brewhouse, fermenters, bright beer tanks, piping and pump internals without equipment disassembly. For large closed vessels such as fermenters, sanitization relies on internal spray devices: static spray balls and rotary jet cleaners. Proper CIP system design and seamless integration with vessel piping depend heavily on hands-on installation and commissioning experience. This is why TianTai regards site installation as a core commitment.
Most importantly, we ensure your brewery does not merely produce beer, but produces consistent quality beer. Brewing process training is embedded within our delivery scope: covering brewing parameters, recipe implementation and quality control handover. In effect, we deliver operational know-how alongside hardware.
True Accountability Equals True Professionalism
A large-scale brewery represents substantial capital investment. During proposal development, TianTai does not only quote standalone equipment prices. We evaluate the full production line CAPEX and OPEX based on your target capacity, site constraints and budget framework, ensuring every investment dollar supports operability, compliance and profitability.
TianTai’s definition of full turnkey delivery encompasses process design, equipment fabrication, site installation and brewing technology training. If you are planning a large commercial brewery project, feel free to contact TianTai for consultation.
